Sprung Dance Floors
Harlequin WoodSpring
Harlequin WoodSpring is a premium sprung floor, a modern update of the traditional ‘basket weave’ construction. It is comprised of a layer of select plywood, a triple-layer of custom machined southern yellow pine with dual density elastomer blocks attached to the underside.
Harlequin WoodSpring

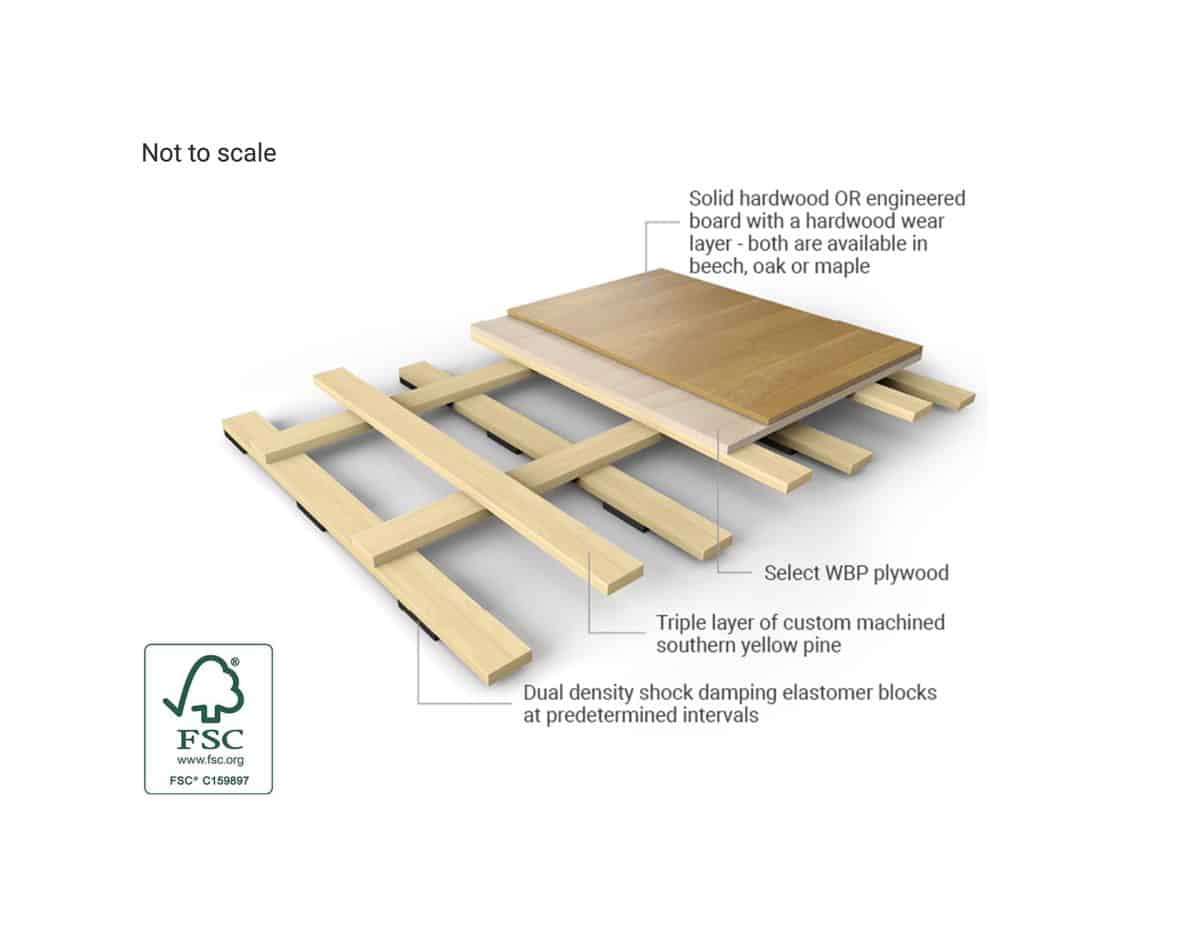

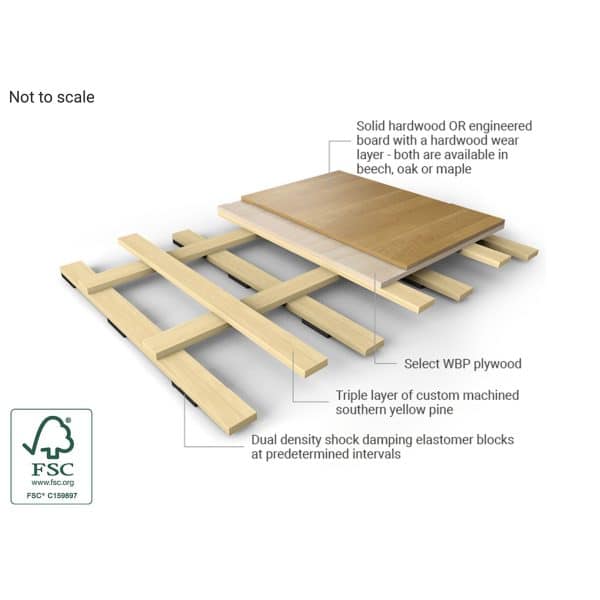

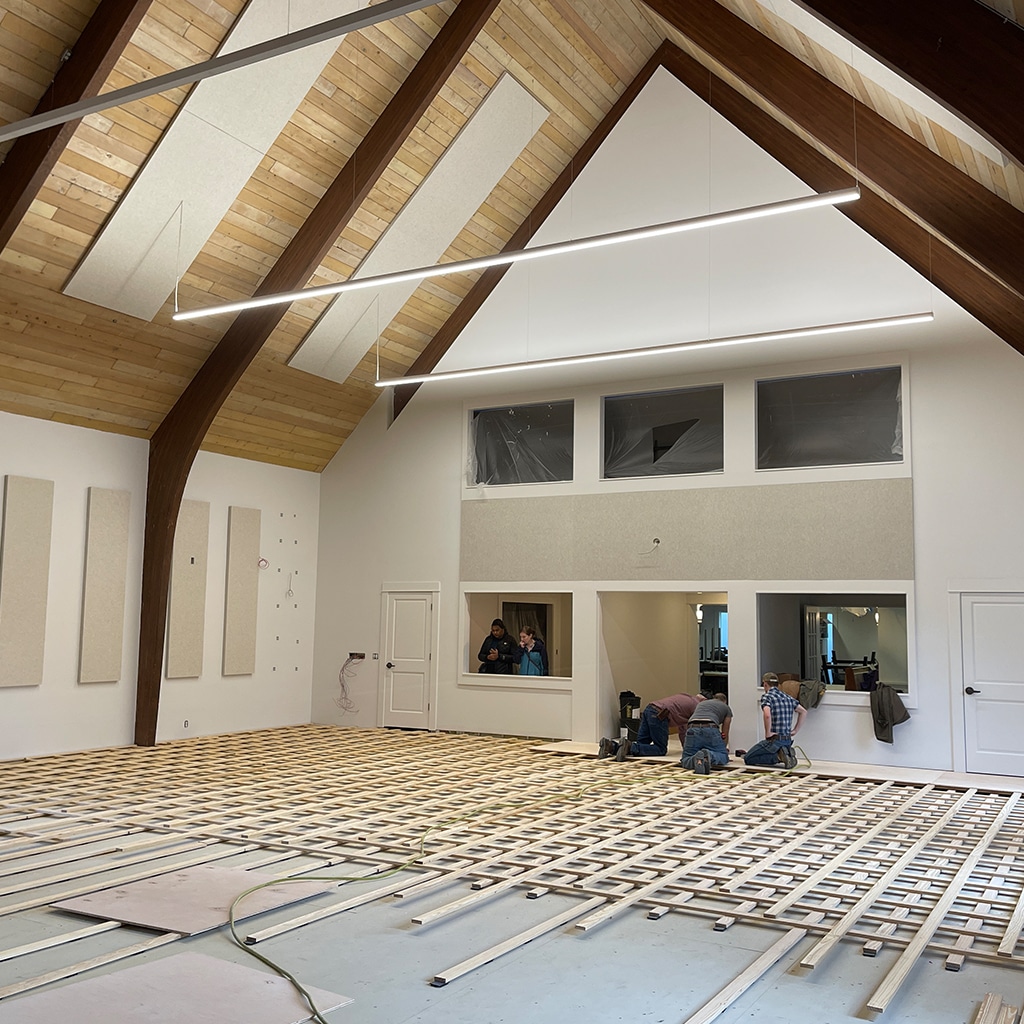

Harlequin WoodSpring is a wooden sprung floor system that is a modern update of the traditional ‘basket weave’ construction. It has a counter batten configuration, comprising a triple layer of custom-machined southern yellow pine arranged at right angles. Shock absorption and energy return are enhanced by dual-density elastomer blocks attached at predetermined intervals to the underside. Layers of flexible MDF and plywood panels are installed on the battens which support the chosen Harlequin performance top surface. Harlequin WoodSpring is suitable for all genres of dance.
Performance surface: Harlequin WoodSpring can be used with a variety of Harlequin performance surface options from the Harlequin range of performance vinyls and solid or engineered wood finishes.

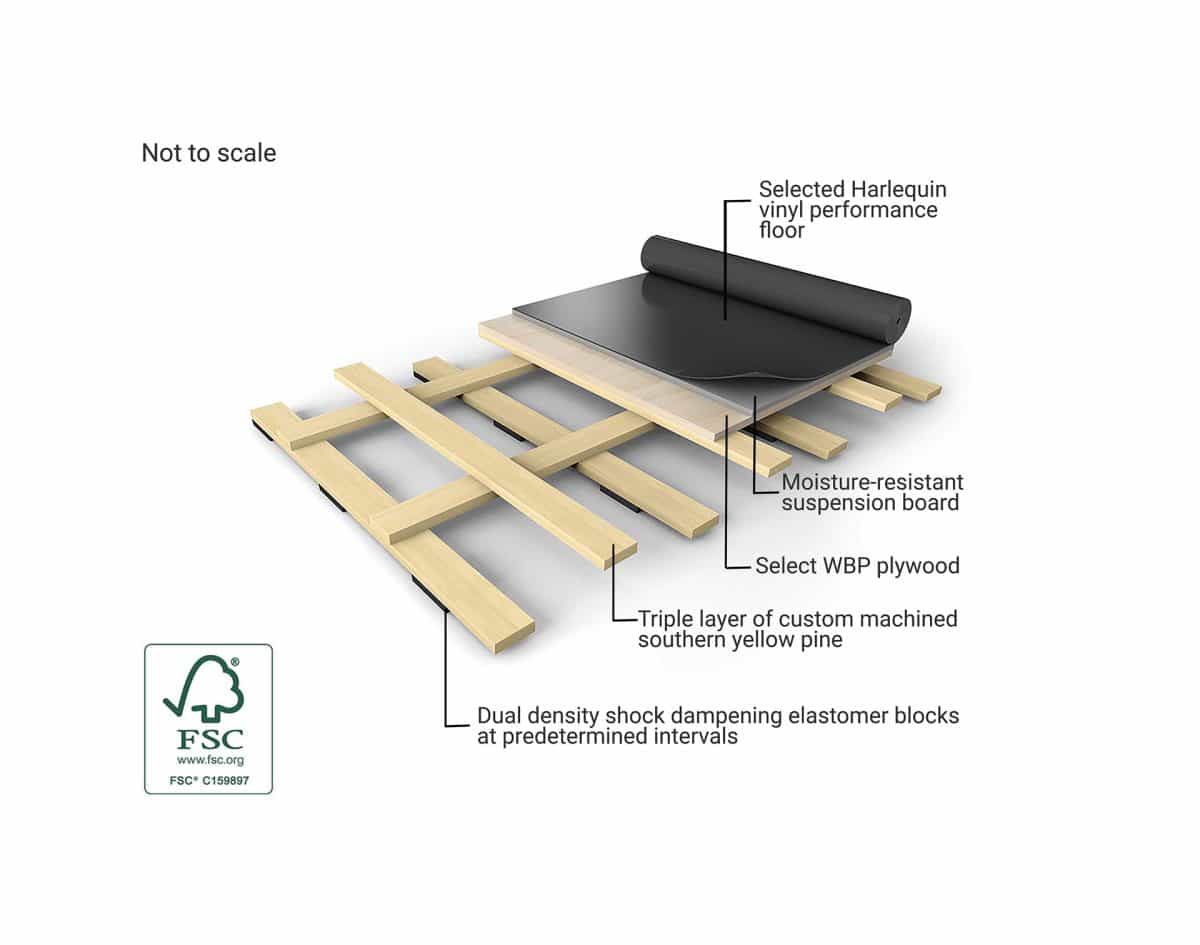

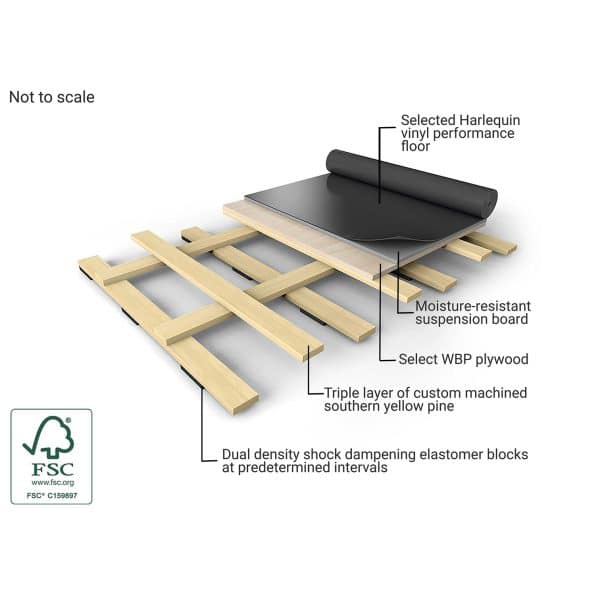

Installation: Harlequin WoodSpring can be laid on any smooth flat surface. If a Harlequin vinyl performance floor is chosen, a moisture-resistant suspension board will be included underneath, along with a colour-matched composite edging profile which will be installed around the finished edges. If a solid hardwood or engineered wooden top surface is chosen, the skirting will be optional.
Harlequin WoodSpring Specifications
Permanent or Portable
Permanent
Min. Floor Thickness
See full spec
Weight
24kg/m² (without surface)
Shock Absorption*
64%
Vertical Deformation*
3.3mm
Area Deflection*
14.9%
Rolling Load*
>1500 N
Point Load**
>3.60kN
Uniform Distributed Load**
>10.00kN
Fire Rating
Bfls 1 to EN 13501
Impact Generated Sound Level within room (Lw)
95.1dB
Thermal Resistance – R Value
1.59 m²K/W
Thermal Insulation – U Value
0.63 W/m²K
Category of Use
A4
VOC Emissions
≤0.10mg/m³
Warranty
10 years
Installation
Installed by Harlequin
Underfloor Heating
Suitable for use with underfloor heating
* Testing Standard – BS EN 14904:2006 ** Testing Standard – BS EN 1991-1-1:2002
All Harlequin wooden sprung floors are 100% recyclable.
Products
Floor Planner
Let us help you find the right floor
Please use our handy floor planner to help decide the best for type for your needs and environment.
Related FAQs
Can you use a Harlequin sprung floor outside?
Harlequin Liberty HD is water resistant and can be used outside. Harlequin vinyl performance surfaces must only be used in dry conditions or under cover. Please contact us if you need more details on which Harlequin floors are suitable for outside use.
How do you install a Harlequin sprung floor?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
How is a Harlequin sprung floor supplied?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
What sprung floors do you have in your range?
We supply five Harlequin sprung floors; Harlequin WoodSpring, Harlequin Activity, Harlequin Liberty, Harlequin Liberty HD and Harlequin Flexity.
