Harlequin Activity
Harlequin Activity is a ‘fully-floating’ sprung floor system without fixings to the sub-floor constructed using Harlequin’s proprietary ‘triple sandwich’ construction method, created over 30 years ago.
Harlequin Activity

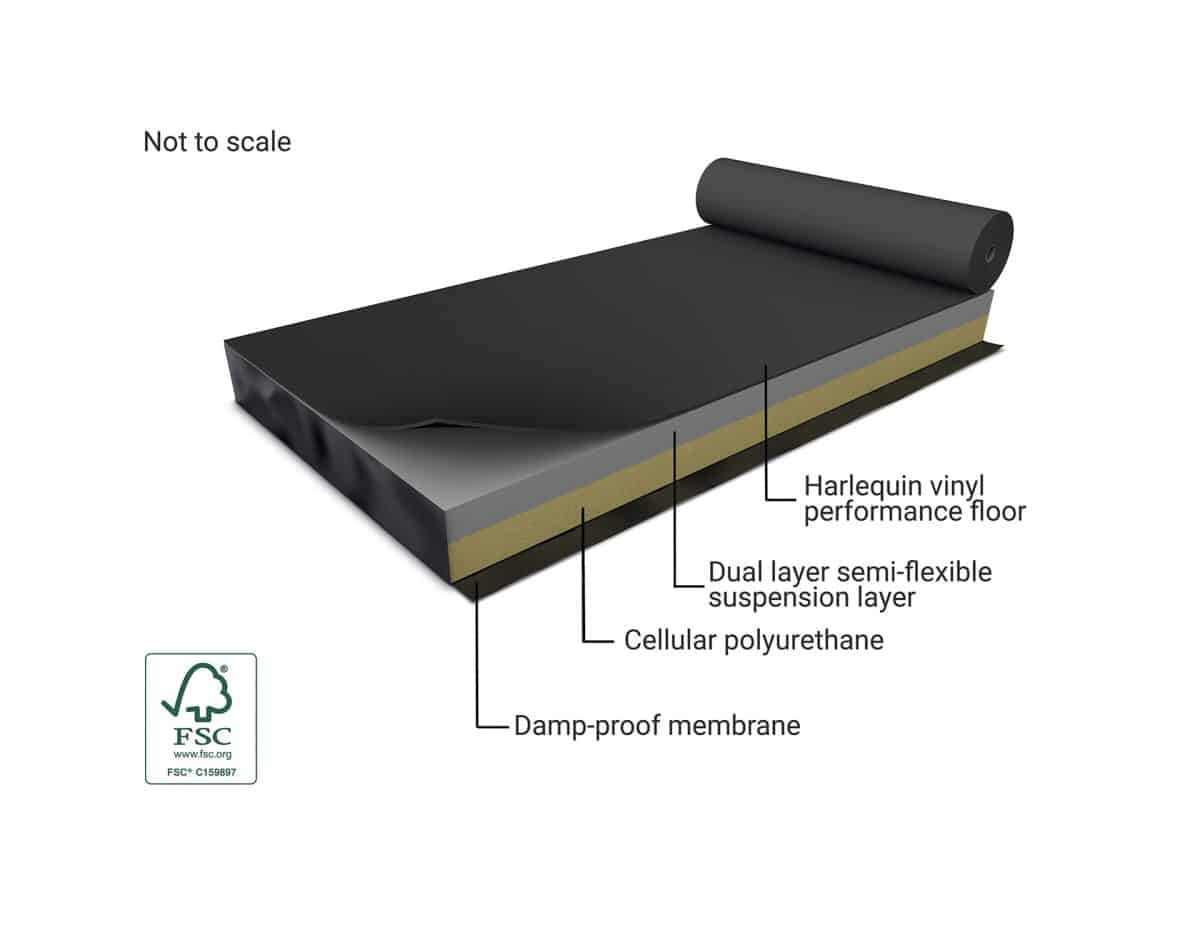

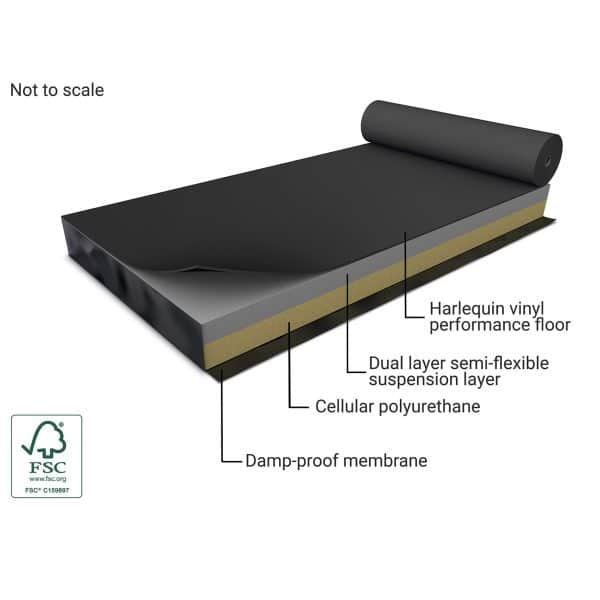

Harlequin Activity is a fully floating sprung floor system using Harlequin’s proprietary ‘triple sandwich’ construction method. The layers provide consistent shock dampening across the floor and offer the same feel and energy return to one or several dancers. There are no fixings to the walls or subfloor and it is suitable for all genres of dance.

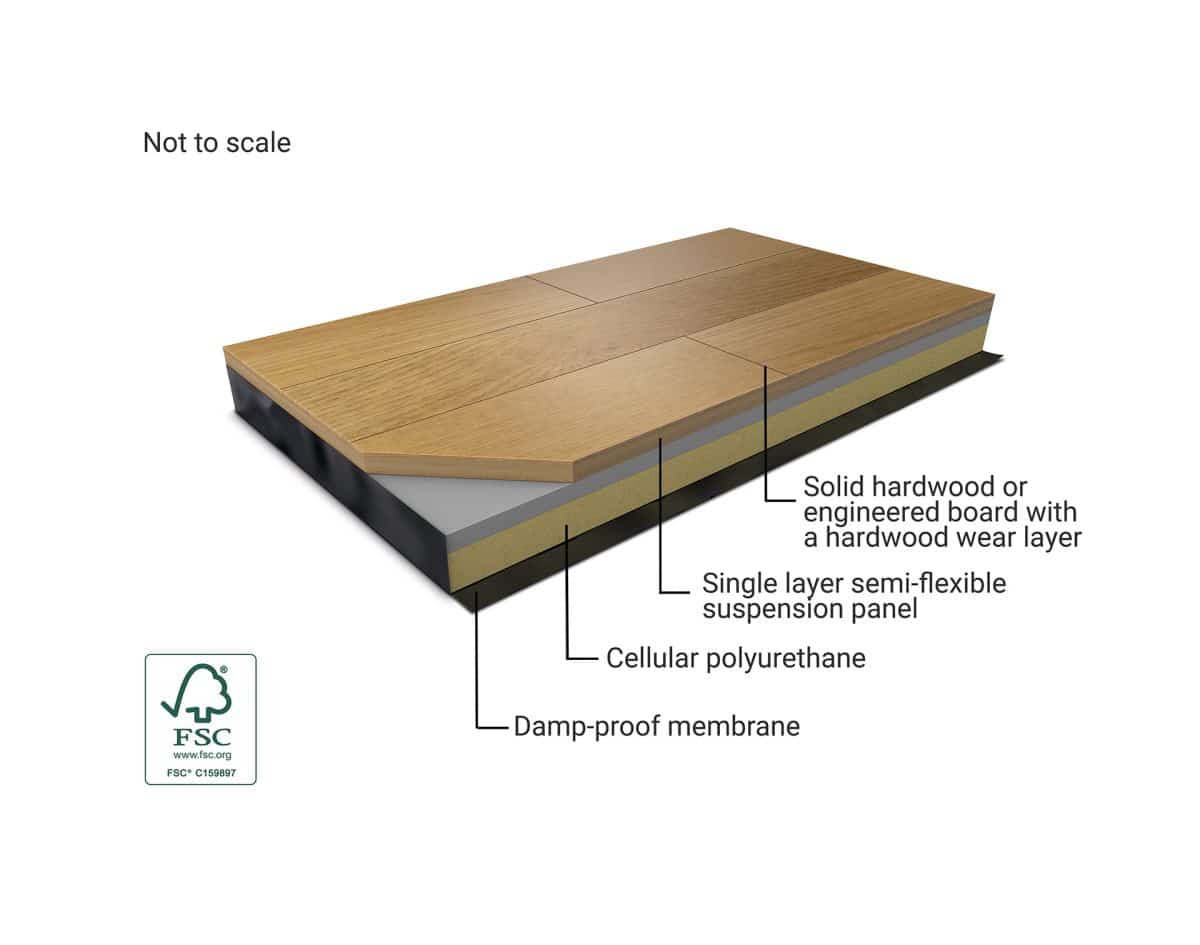

Performance surface: Harlequin Activity can be used with a variety of performance surface options from the Harlequin range of performance vinyls and solid or engineered wood finishes.

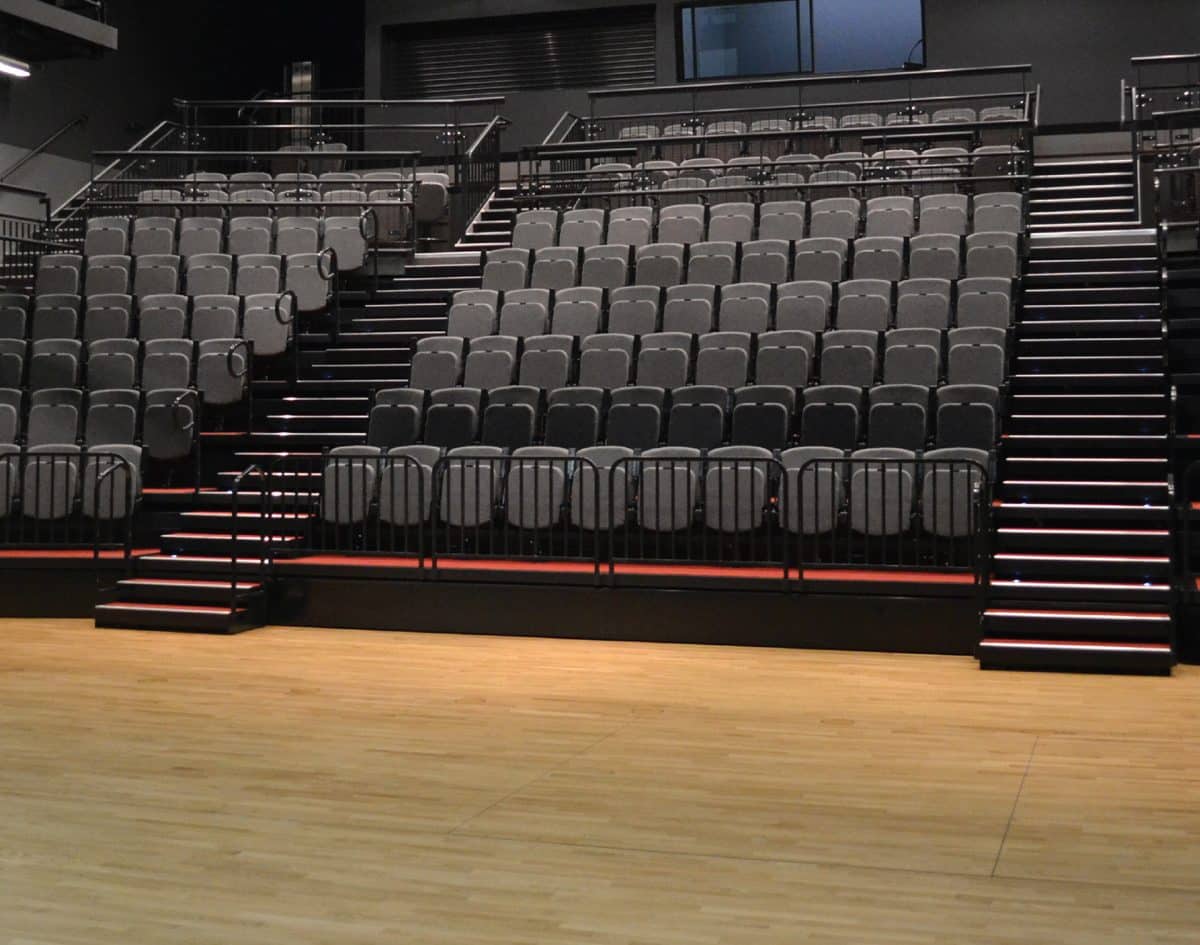

Installation: Harlequin Activity is designed for permanent installation and can be laid on any smooth flat surface without prior preparation. The system can be adapted to withstand heavy loading including retractable seating.
Harlequin Activity Specifications
Permanent or Portable
Permanent
Min. Floor Thickness – Activity
46mm – full spec
Weight
14.10kg/m² (Without surface)
Shock Absorption*
64%
Vertical Deformation*
3.8mm
Area Deflection*
7.2%
Rolling Load*
>1500 N
Point Load**
>3.60kN
Uniform Distributed Load**
>10.00kN
Fire Rating
Bfls 1 to EN 13501
Impact Sound Reduction (Δ Lw)
23dB
Thermal Resistance – R Value
7.66 m²K/W
Thermal Insulation – U Value
0.131 W/m²K
Category of Use
A4
Recycled Content
50%
VOC Emissions
≤0.5mg/m³
VOC Emissions
<0.10 mg/m³
Warranty
10 years
Installation
Installed by Harlequin
Underfloor Heating
Not suitable for use with underfloor heating
* Testing Standard – BS EN 14904:2006 ** Testing Standard – BS EN 1991-1-1:2002
All Harlequin wooden sprung floors are 100% recyclable.
Products
Floor Planner
Let us help you find the right floor
Please use our handy floor planner to help decide the best for type for your needs and environment.
Related FAQs
Can you use a Harlequin sprung floor outside?
Harlequin Liberty HD is water resistant and can be used outside. Harlequin vinyl performance surfaces must only be used in dry conditions or under cover. Please contact us if you need more details on which Harlequin floors are suitable for outside use.
How do you install a Harlequin sprung floor?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
How is a Harlequin sprung floor supplied?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
What sprung floors do you have in your range?
We supply five Harlequin sprung floors; Harlequin WoodSpring, Harlequin Activity, Harlequin Liberty, Harlequin Liberty HD and Harlequin Flexity.
