Harlequin Liberty
Harlequin Liberty panels feature dual-density shock dampening elastomer pads, giving uniform and consistent shock dampening.
Harlequin Liberty

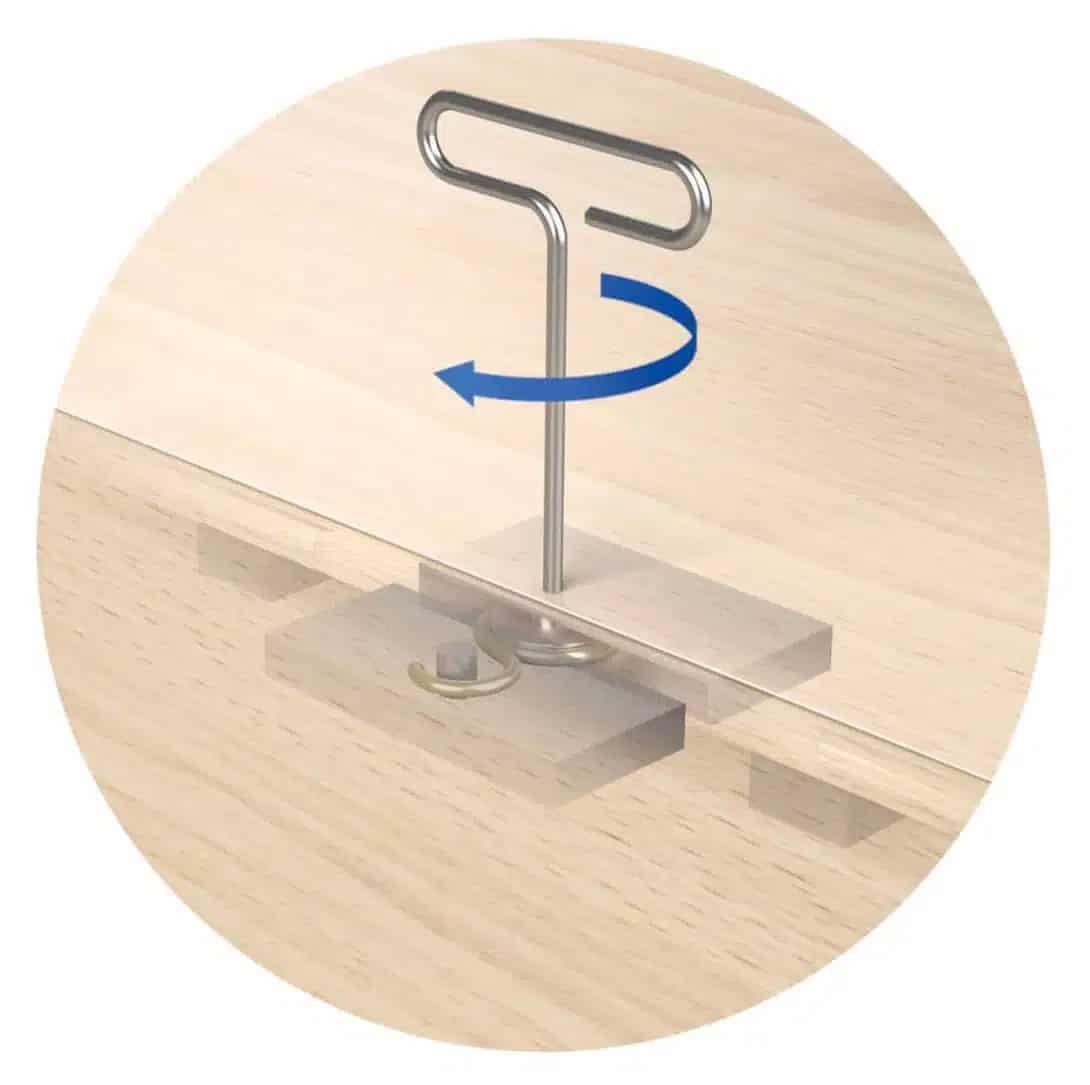

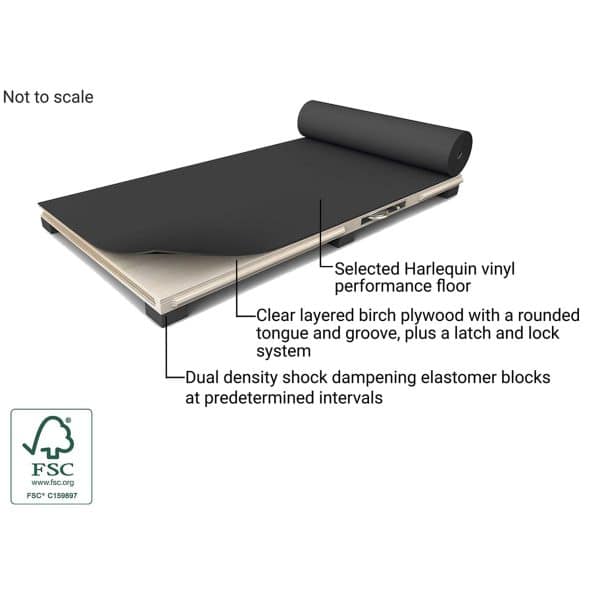

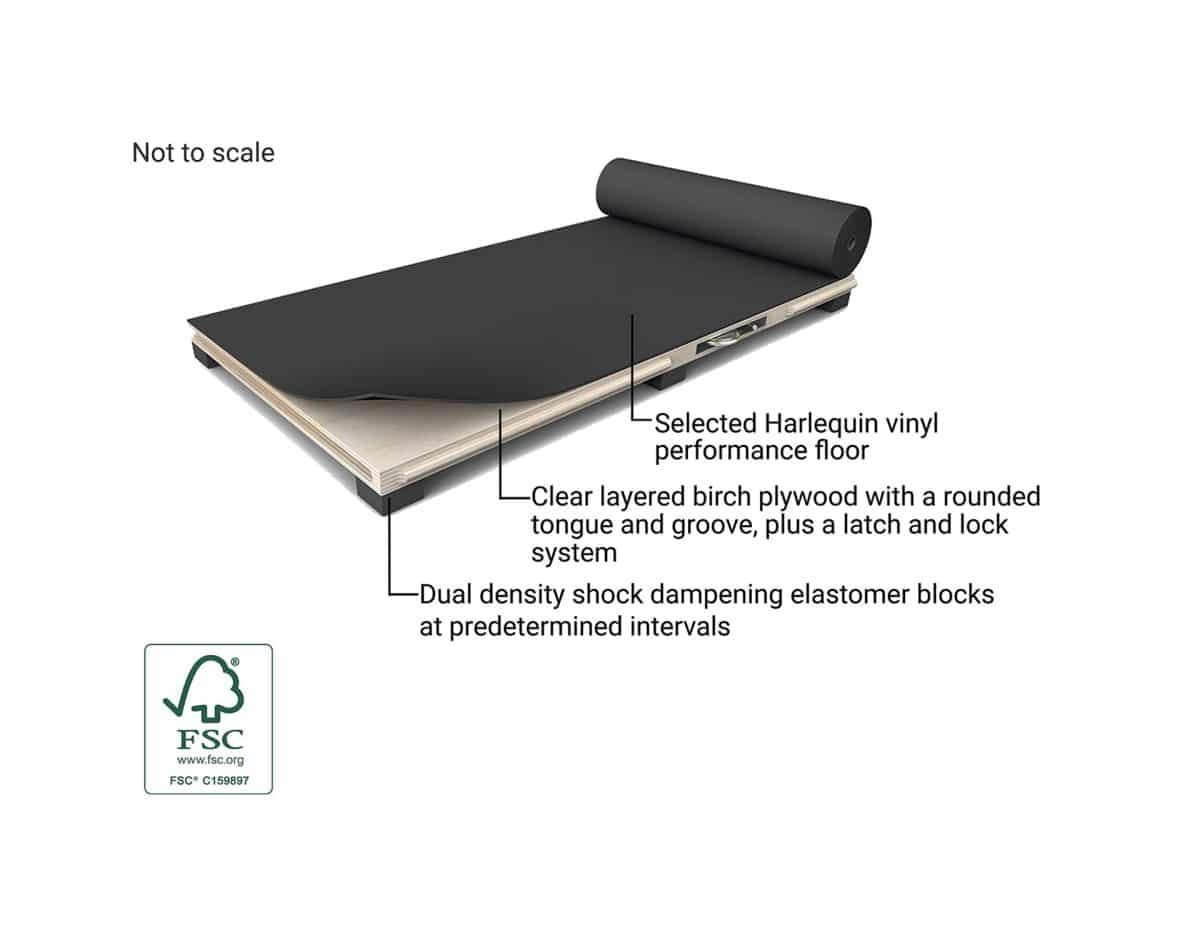

Harlequin Liberty is a lacquered birch plywood sprung floor panel system featuring shock dampening dual-density elastomer pads. The panels join using a rounded tongue and groove and are secured in place using our proprietary ‘one turn of the key’ latch and lock mechanism.
Performance surface: Harlequin Liberty can be used with a variety of performance surface options from the Harlequin range of vinyls and solid or engineered wood finishes. Edge trims and ramps are available if required. For easy storage and transportation please see Harlequin’s panel cart.
Installation: Harlequin Liberty is designed for both permanent or portable installation. The panels are laid in a ‘brickwork fashion’ onto the sub-floor so that cross joins do not coincide. This provides consistent shock dampening across the floor and offers the same feel and energy return to one or several dancers.
Harlequin Liberty Specifications
Permanent or Portable
Both
Panel Size
2m x 1m & 1m x 1m
Min. Floor Thickness
37mm
Weight
12.5kg/m² (Without surface)
Shock Absorption*
67%
Vertical Deformation*
4.1mm
Area Deflection*
12.8%
Rolling Load*
>1500 N
Point Load**
>3.60kN
Uniform Distributed Load**
>10.00kN
Fire Rating
Bfls 1 to EN 13501
Impact Sound Reduction (Δ Lw)
104.20dB
Thermal Resistance – R Value
1.52 m²K/W
Thermal Insulation – U Value
0.658 W/m²K
Category of Use
A4
VOC Emissions
≤0.10mg/m³
Warranty
10 years if installed by Harlequin. 5 years if not installed by Harlequin
Installation
Installed by Harlequin or the customer
Underfloor Heating
Suitable for use with underfloor heating
* Testing Standard – BS EN 14904:2006 ** Testing Standard – BS EN 1991-1-1:2002
All Harlequin wooden sprung floors are 100% recyclable.
Products
Floor Planner
Let us help you find the right floor
Please use our handy floor planner to help decide the best for type for your needs and environment.
Related FAQs
Can you use a Harlequin sprung floor outside?
Harlequin Liberty HD is water resistant and can be used outside. Harlequin vinyl performance surfaces must only be used in dry conditions or under cover. Please contact us if you need more details on which Harlequin floors are suitable for outside use.
How do you install a Harlequin sprung floor?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
How is a Harlequin sprung floor supplied?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
What sprung floors do you have in your range?
We supply five Harlequin sprung floors; Harlequin WoodSpring, Harlequin Activity, Harlequin Liberty, Harlequin Liberty HD and Harlequin Flexity.
