Event and Production Vinyl Floor Rolls

Harlequin Clarity

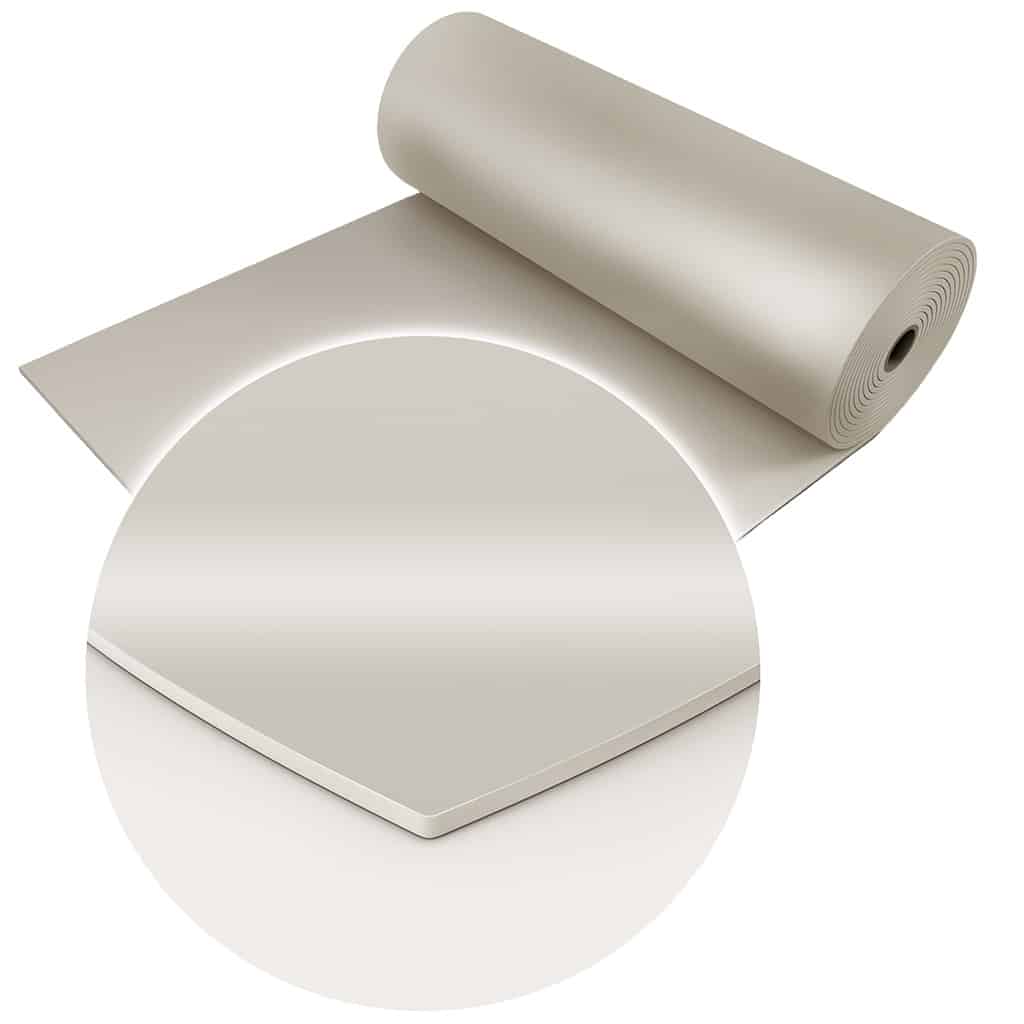

Harlequin Clarity is a durable transparent vinyl performance floor with a slip-resistant embossed surface. It is ideal for reverse digital printing, where the printed design is on the underside of the floor and therefore protected from wear and damage.


Select your product options:

Colour:

Length:

Clear


Harlequin Clarity is a durable transparent vinyl performance floor with a slip-resistant embossed surface. It is ideal for reverse digital printing, where the printed design is on the underside of the floor and therefore protected from wear and damage.

Installation: Harlequin Clarity is specified for permanent or temporary installation. For permanent installation the joins are cold welded and for temporary installation double sided tape is used to form a continuous performance surface.

Usage: When reverse printed, Harlequin Clarity is suitable for high-traffic commercial use and as a dance surface. It can also be used as a clear protective wear layer which allows the floor underneath to show through or it can be used to protect an existing floor, such as a floor in a listed building.

Material

Heterogeneous vinyl

Permanent or Portable

Both

Roll Lengths

15m

Roll Width

1.52m

Thickness

1.90mm

Weight

2.47kg/m²

Finish

Embossed

Fire Rating

Cfl-s1 (EN 13501-1)

Warranty

10 years if installed by Harlequin. 5 years if installed by the customer

Warranty – Printed Flooring

The warranty period will depend upon the intended use.

Maximum Printed Area

12m x 1.42m

Fixing Type

Adhesive or Tape

Seams

Cold Welded or Taped

Gloss Level

Nominal 6

Lightfastness

≥6

VOC Emissions

≤0.5mg/m³

Recyclability

100%

Underfloor Heating

Suitable for use with underfloor heating

3rd Party Cert.

Environmental Product Declaration A+ LEED, BREEAM, REACH Compliant

Please note: Rolls of flooring will be delivered on pallets to the nearest kerbside. Our flooring products are large and heavy so please ensure that the necessary arrangements to receive them are in place on the day of delivery. Experience suggests that 2 people will be required.

recycle-logo

All Harlequin vinyl floors are 100% recyclable.


Floor Planner

Please use our handy floor planner to help decide the best for type for your needs and environment.

How can a Harlequin vinyl floor be laid?

A permanent vinyl floor is stuck down with adhesive and can’t be removed without risking damage to the floor. A semi-permanent vinyl floor is loose-laid using double-sided tape and then welded at the seams. The seams can later be cut and the floor taken up. A portable vinyl floor is rolled out and the seams are either covered with tape or temporarily secured to the sub-floor on the underside with double-sided tape.

How do I clean my Harlequin vinyl floor?

Please view our ‘Cleaning and Maintenance’ page for guidance on the best method that you should follow to clean your vinyl floor.

Harlequin Vinyl Daily Cleaner contains the biocide Benzalkonium Chloride which provides antibacterial properties and has been proven to be effective against most bacteria and viruses, including novel human coronavirus SARS-CoV-2.

How many vinyl floors do you supply?

How should I store a Harlequin vinyl floor?

Always ensure that the Harlequin Vinyl Floor is cleaned before it is rolled up. If there is any dirt on the underside sweep it clean to prevent transfer onto the performance surface when rolling. Ensure that all adhesive residue from the tape is removed before rolling, otherwise it may be transferred to the performance surface and cause damage. Any stubborn adhesive residue can be removed using warm soapy water and a non-abrasive scouring pad. Allow to the soapy water to penetrate before using the pad. If any adhesive residue remains, dab lightly with methylated spirit and wipe off with a soft cloth Retain the original cardboard core, as it will be required to roll the floor after use. The cores help support the product and will prevent damage caused by bending and creasing. Use of the core will also make the rolled floor easier to handle. If the original cardboard cores are no longer available, use a PVC drainpipe with a minimum diameter of 75mm, ideally 100mm. All Harlequin Vinyl Floors except Allegro, Studio and FreeStyle should be stored on the core horizontally, not vertically (standing on the roll end) which is likely to cause damage to the floor edge. Harlequin Allegro, Studio and FreeStyle should be stored vertically to prevent compression damage to the foam backing. If the floor is being transported to another location, retain the original packaging (box and inserts) for reuse to protect the floor in transit.

How is a Harlequin floor delivered?

The transportation used will depend upon your order. If your order’s small then it could arrive via Royal Mail or a courier service. If your order is large or heavy it may arrive in a 7.5 tonne tail-lift lorry, so please bear this in mind and let us know if you think there will be any difficulties.
