Vinyl Dance Floors
Harlequin Marineā¢

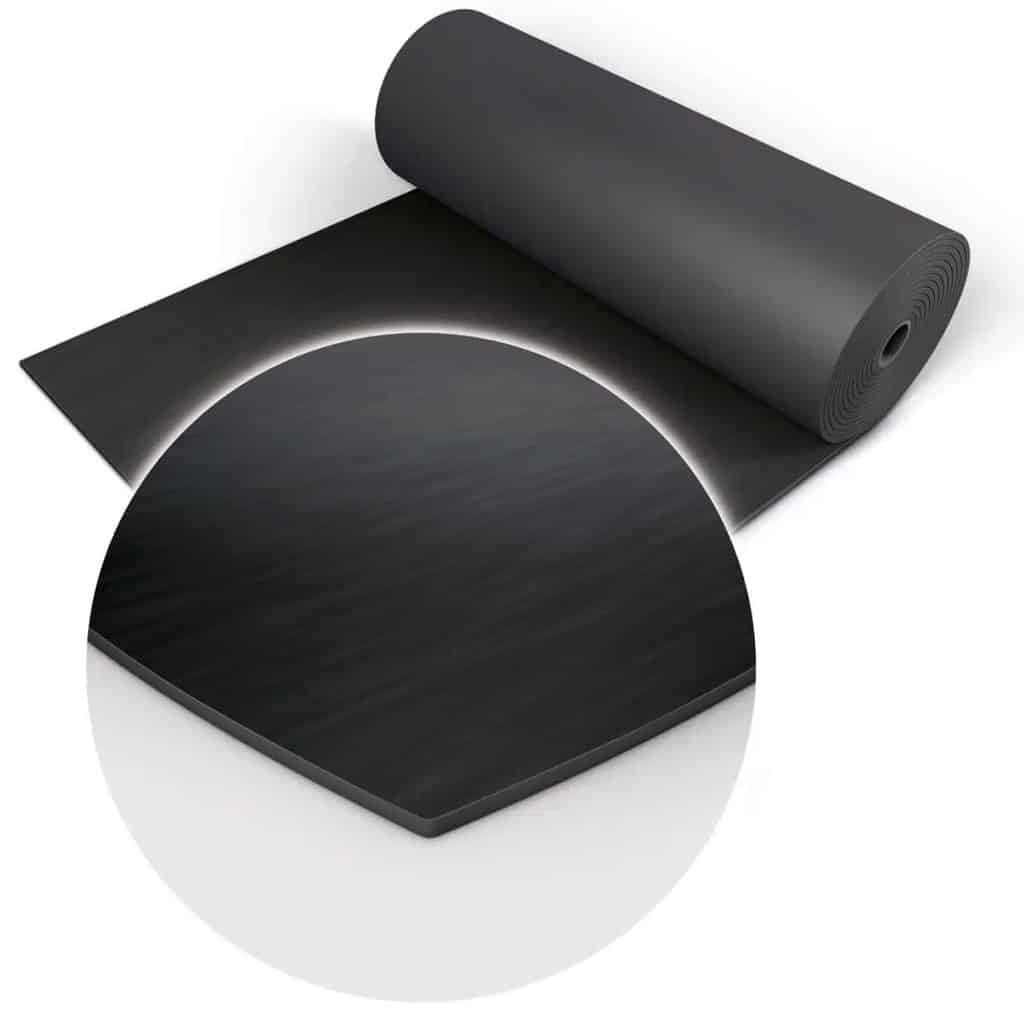

Harlequin Marine is a hard-wearing, homogeneous vinyl dance floor which conforms to International Marine Organization (IMO) standards and fire ratings and is widely installed on cruise liners. It is fire resistant, with a slightly marbled surface.
Select your product options:
Harlequin Marineā¢
Harlequin Marine is a hard-wearing, homogeneous vinyl dance floor which conforms to International Marine Organization (IMO) standards and fire ratings and is widely installed on cruise liners. It is fire resistant, with a slightly marbled surface.
Installation: Harlequin Marine is specified for permanent installation and is suitable for use on marine vessels including scene docks on cruise ships. It can be laid on any hard, smooth subfloor and is an excellent choice as a vinyl performance surface in conjunction with a Harlequin sprung floor.
Usage: Harlequin Marine is widely used as a stage surface on ships but is also suitable for multi-purpose use including concerts, television, theatre, operatic performances and various dance types including percussive (flamenco, Irish and tap).
Harlequin Marineā¢ Specifications
Material
Heterogeneous vinyl
Permanent or Portable
Permanent
Roll Lengths
20m
Roll Width
2m
Thickness
2mm
Weight
3.35kg/mĀ²
Finish
Marbled
Fire Rating
IMO FTP Code part 2 & 5
Warranty
10 years if installed by Harlequin. 5 years if installed by the customer
Fixing Type
Adhesive
Seams
Welded
Light Reflectance
501-2
Gloss Level
Nominal 8
Lightfastness
ā„6
Recycled Content
23-30%
VOC Emissions
ā¤0.5mg/mĀ³
Recyclability
100%
Underfloor Heating
Suitable for use with underfloor heating
3rd Party Cert.
Environmental Product Declaration A+ LEED, BREEAM, REACH Compliant
Please note: Rolls of flooring will be delivered on pallets to the nearest kerbside. Our flooring products are large and heavy so please ensure that the necessary arrangements to receive them are in place on the day of delivery. Experience suggests that 2 people will be required.
All Harlequin vinyl floors are 100% recyclable.
Who performs on Harlequin Marineā¢
Products
Floor Planner
Let us help you find the right floor
Please use our handy floor planner to help decide the best for type for your needs and environment.
Related FAQs
How can a Harlequin vinyl floor be laid?
A permanentĀ vinyl floorĀ is stuck down with adhesive and canāt be removed without risking damage to the floor. A semi-permanent vinyl floor is loose-laid using double-sided tape and then welded at the seams. The seams can later be cut and the floor taken up. A portable vinyl floor is rolled out and the seams are either covered with tape or temporarily secured to the sub-floor on the underside with double-sided tape.
How do I clean my Harlequin vinyl floor?
Please view ourĀ āCleaning and MaintenanceāĀ page for guidance on the best method that you should follow to clean yourĀ vinyl floor.
Harlequin Vinyl Daily CleanerĀ contains the biocide Benzalkonium Chloride which provides antibacterial properties and has been proven to be effective against most bacteria and viruses, including novel human coronavirus SARS-CoV-2.
How many vinyl floors do you supply?
We supply ten different vinyl floors which are ,Ā Harlequin Cascade,Ā Harlequin Studio,Ā Harlequin Reversible,Ā Harlequin Reversible Pro,Ā Harlequin Fiesta,Ā Harlequin Hi-Shine,Ā Harlequin Marine, Ā Harlequin Showfloor,Ā Harlequin StandfastĀ andĀ Harlequin Allegro.
How should I store a Harlequin vinyl floor?
Always ensure that the Harlequin Vinyl Floor is cleaned before it is rolled up. If there is any dirt on the underside sweep it clean to prevent transfer onto the performance surface when rolling. Ensure that all adhesive residue from the tape is removed before rolling, otherwise it may be transferred to the performance surface and cause damage. Any stubborn adhesive residue can be removed using warm soapy water and a non-abrasive scouring pad. Allow to the soapy water to penetrate before using the pad. If any adhesive residue remains, dab lightly with methylated spirit and wipe off with a soft cloth Retain the original cardboard core, as it will be required to roll the floor after use. The cores help support the product and will prevent damage caused by bending and creasing. Use of the core will also make the rolled floor easier to handle. If the original cardboard cores are no longer available, use a PVC drainpipe with a minimum diameter of 75mm, ideally 100mm. All Harlequin Vinyl Floors except Allegro, Studio and FreeStyle should be stored on the core horizontally, not vertically (standing on the roll end) which is likely to cause damage to the floor edge. Harlequin Allegro, Studio and FreeStyle should be stored vertically to prevent compression damage to the foam backing. If the floor is being transported to another location, retain the original packaging (box and inserts) for reuse to protect the floor in transit.
How is a Harlequin floor delivered?
The transportation used will depend upon your order. If your orderās small then it could arrive via Royal Mail or a courier service. If your order is large or heavy it may arrive in a 7.5 tonne tail-lift lorry, so please bear this in mind andĀ let us knowĀ if you think there will be any difficulties.
