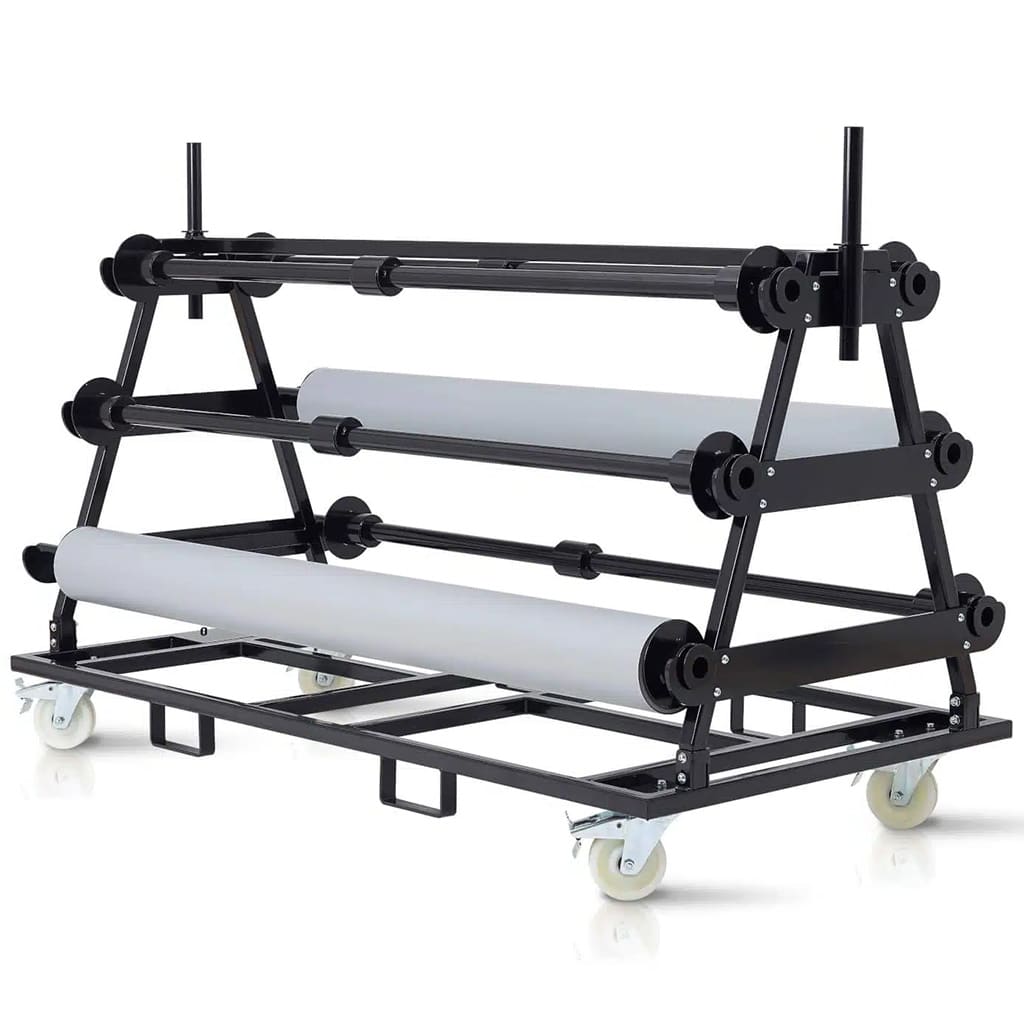

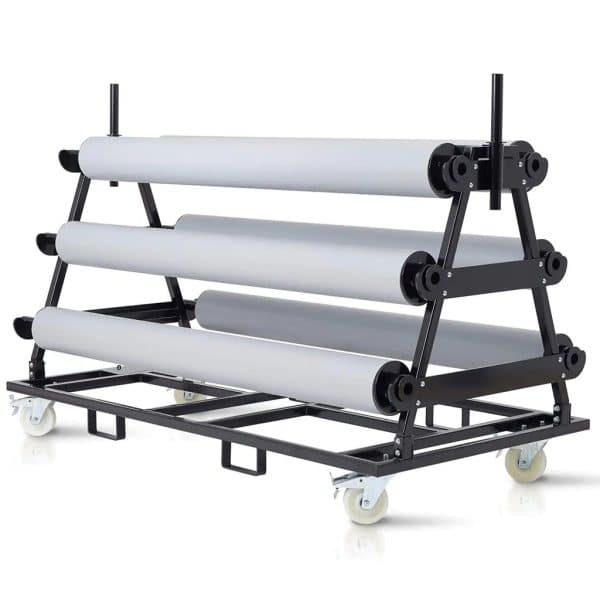

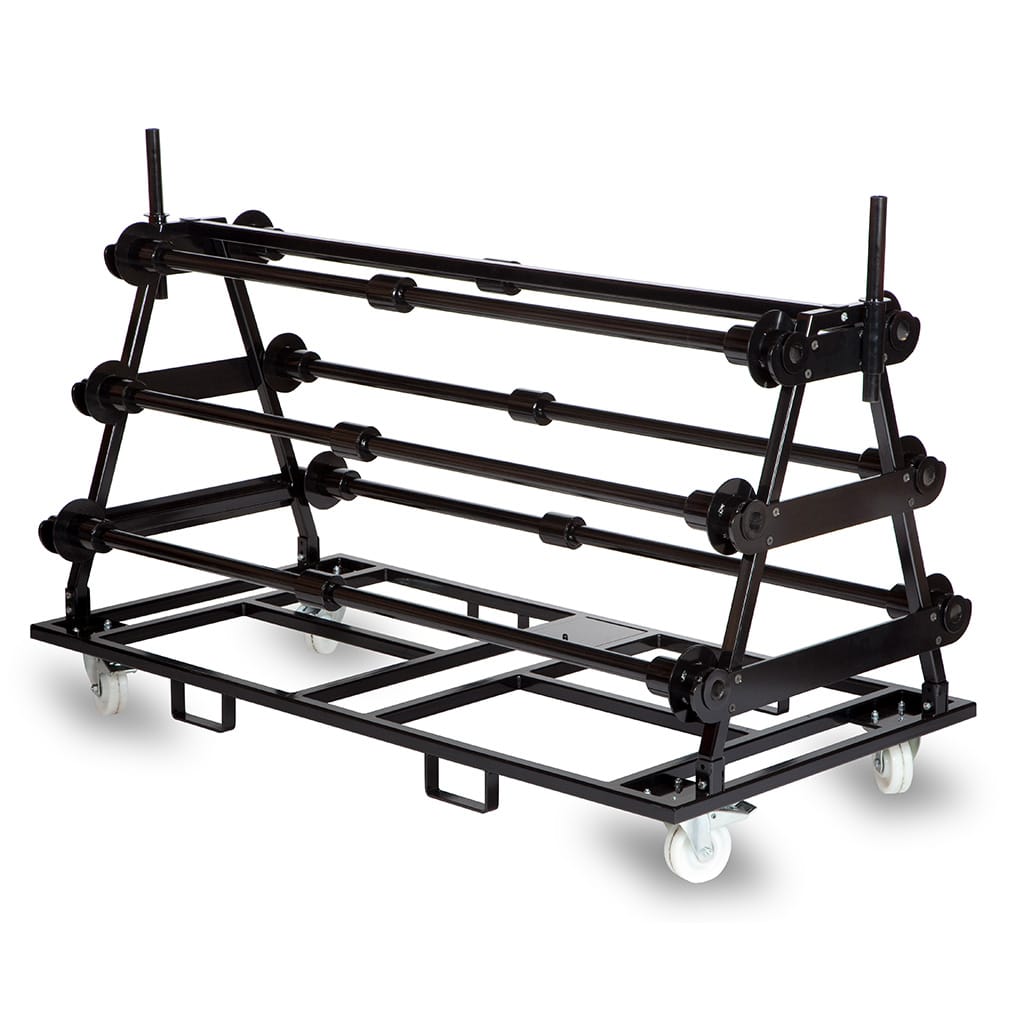

Harlequin Vinyl Roll Cart

The Harlequin vinyl roll cart is recommended for use if you wish to store or move rolls of Harlequin vinyl floor.


Select your product options:

Colour:

Length:

Clear


The Harlequin Liberty panel cart allows for safe storage and easy handling of Harlequin Liberty sprung floor panels, edge trims and ramps.

Features:

  • Available 1.5m or 2m versions for 4 or 6 rolls.
  • Constructed from black scratch-resistant, powder-coated steel.
  • Two handles are supplied with each cart to assist with loading and unloading and, when not in use, these locate on the end sections to help manoeuvre the cart itself.
  • The heavy gauge poles which support the rolls of flooring have special end fittings to locate them securely on the cart and a centre support to prevent bowing of the rolls.
  • Four heavy-duty swivel castors; with brakes and non-marking polyamide wheels.
  • A lockable tool box – ideal for keeping tools for cutting and fitting vinyl floors close to hand.
  • Pallet saddles for forklift guidance as the whole unit is designed to be be lifted.
  • Arrives flat-packed and can be assembled by one person.

Please note that all Harlequin vinyl floors (except Harlequin Allegro) with a roll length of up to 18 linear metres will fit the roll carts, however, the roll carts are primarily intended for up to 15 linear metre rolls of either Harlequin Hi-Shine, Harlequin Reversible or Harlequin Reversible Pro.

1.5m version

Overall length

1.84m

Overall width

1.1m

Maximum roll diameter

0.37m

Overall height (with handle)

1.26m

Overall height (without handle)

1.49m

Unladen weight

181kg

2m version

Overall length

2.28m

Overall width

1.1m

Maximum roll diameter

0.37m

Overall height (with handle)

1.26m

Overall height (without handle)

1.49m

Unladen weight

196kg

Roll lengths that will fit the cart and approximates weights:

Hi-Shine

10m – 30kg
15m – 45kg
18m – 54kg
20m – 60kg

Reversible

10m – 32kg
15m – 48kg
18m – 58kg
20m – 64kg

Reversible Pro

10m – 45g
15m – 68kg
18m – 81kg
20m – 90kg

Studio

10m – 46kg
15m – 69kg
18m – 83kg

Cascade

10m – 52kg
15m – 78kg
18m – 94kg


Can you use a Harlequin vinyl floor outside?

Yes but only when you use it in dry conditions or it’s under cover. If it gets wet then it will become very slippery. If it is placed in direct sunlight it will heat up and may expand. Lighter colours will stay cooler. If in doubt, please contact us.

How should I store a Harlequin vinyl floor?

Always ensure that the Harlequin Vinyl Floor is cleaned before it is rolled up. If there is any dirt on the underside sweep it clean to prevent transfer onto the performance surface when rolling. Ensure that all adhesive residue from the tape is removed before rolling, otherwise it may be transferred to the performance surface and cause damage. Any stubborn adhesive residue can be removed using warm soapy water and a non-abrasive scouring pad. Allow to the soapy water to penetrate before using the pad. If any adhesive residue remains, dab lightly with methylated spirit and wipe off with a soft cloth Retain the original cardboard core, as it will be required to roll the floor after use. The cores help support the product and will prevent damage caused by bending and creasing. Use of the core will also make the rolled floor easier to handle. If the original cardboard cores are no longer available, use a PVC drainpipe with a minimum diameter of 75mm, ideally 100mm. All Harlequin Vinyl Floors except Allegro, Studio and FreeStyle should be stored on the core horizontally, not vertically (standing on the roll end) which is likely to cause damage to the floor edge. Harlequin Allegro, Studio and FreeStyle should be stored vertically to prevent compression damage to the foam backing. If the floor is being transported to another location, retain the original packaging (box and inserts) for reuse to protect the floor in transit.

How long will it take to deliver my order?

If you place your order during working hours, your item(s) are in stock and your payment has been confirmed, then delivery will usually be two to three working days. Express delivery is available – please contact us for further details.

Where do you deliver to?

British Harlequin web shop orders can be delivered to the UK only. Our European web shop can deliver to countries on the European continent. For all other destinations please contact us on +44 (0)1892 514 888 before placing your order.
