Sprung Dance Floors
Harlequin Flexity
Harlequin Flexity is a cost-effective, self-install sprung floor panel system. Selected birch ply panels with shock-absorbing elastomer pads join together using Harlequin’s unique tongue and groove system.
Harlequin Flexity

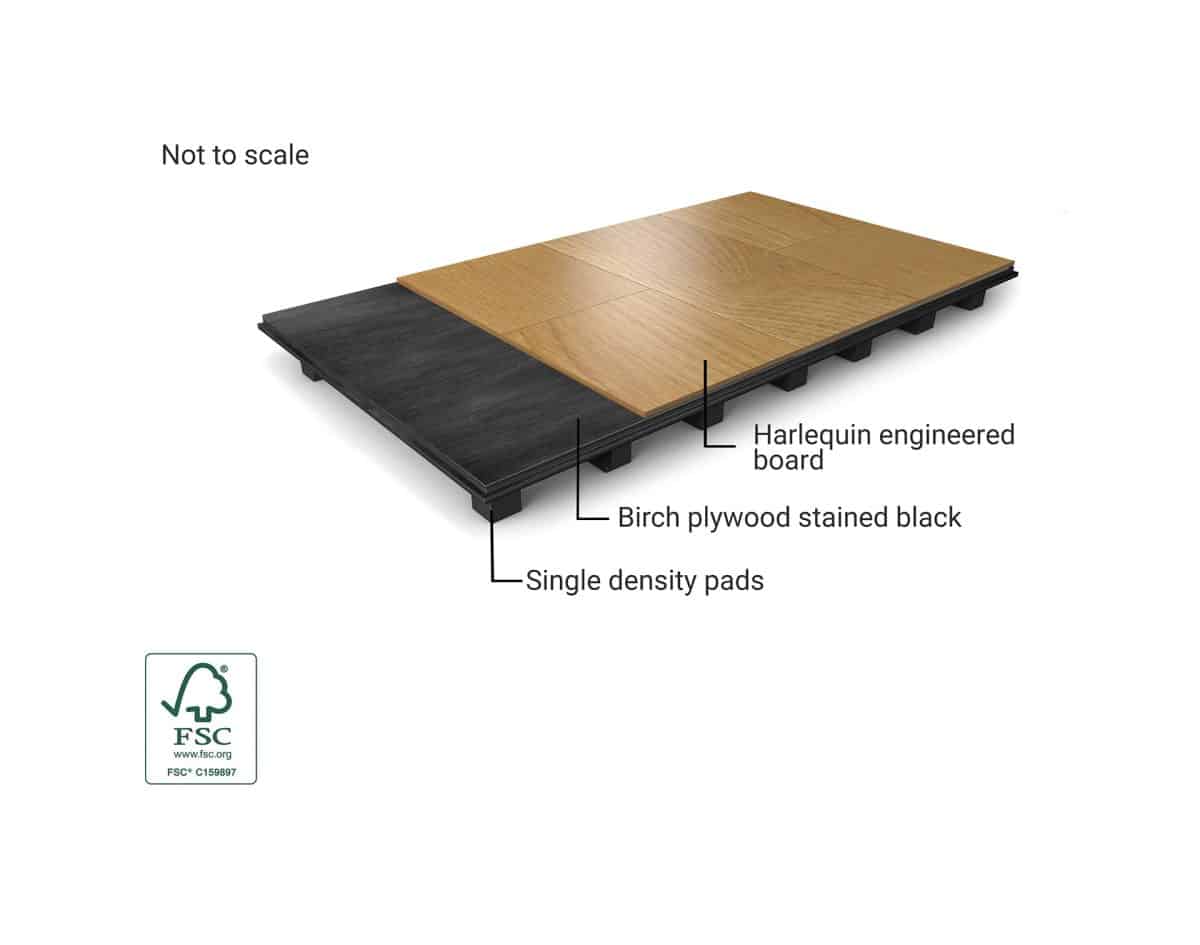

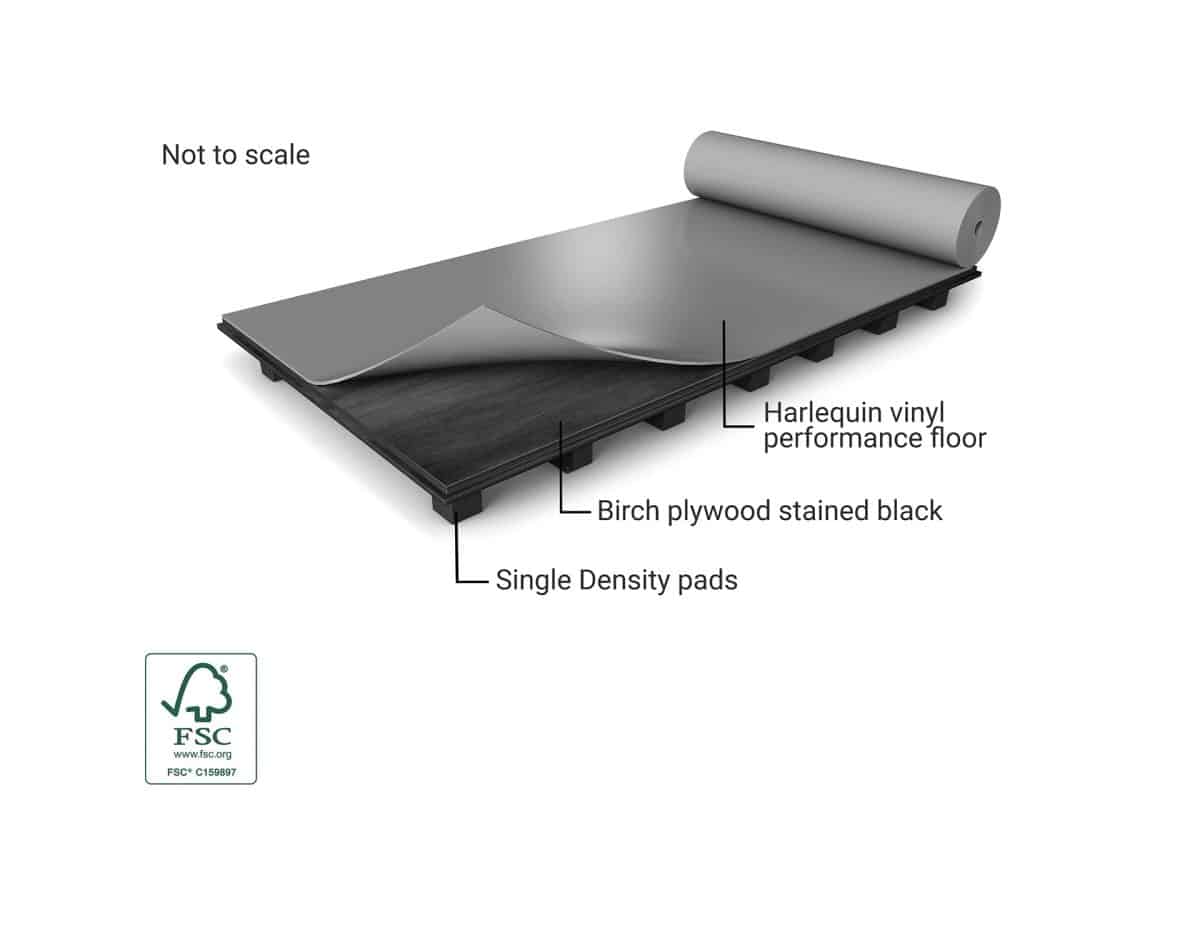

Harlequin Flexity is a self-install sprung floor system featuring stained birch plywood panels and shock-dampening single density elastomer pads.
Performance surface: Harlequin Flexity can be used with a variety of performance surfaces. Harlequin have a range of performance vinyls and solid or engineered wood finishes to choose from. Ramps are available if required.
Installation: Harlequin Flexity is designed for permanent or semi-permanent installation. The panels join using a tongue and groove system and can be glued together for permanent installation or fixed using wood screws for a semipermanent solution. The Harlequin Flexity panels are laid in such a way that cross joins do not coincide. This provides consistent shock dampening across the floor and offers the same feel and energy return to one or several dancers.
Harlequin Flexity Specifications
Permanent or Portable
Permanent or Semi-Permanent
Panel Size
1.125mm x 2.250mm – full spec
Min. Floor Thickness
37mm
Weight
11.85kg/m² (Without surface)
Shock Absorption*
67%
Vertical Deformation*
3.9mm
Area Deflection*
12.8%
Rolling Load*
>1500 N
Point Load**
>3.60kN
Uniform Distributed Load**
>10.00kN
Fire Rating
Bfls 1 to EN 13501
Impact Sound Reduction (Δ Lw)
104.20dB
Thermal Resistance – R Value
1.52 m²K/W
Thermal Insulation – U Value
0.658 W/m²K
Category of Use
A4
VOC Emissions
≤0.10mg/m³
Warranty
10 years if installed by Harlequin. 5 years if not installed by Harlequin
Installation
Installed by Harlequin
Underfloor Heating
Suitable for use with underfloor heating
* Testing Standard – BS EN 14904:2006 ** Testing Standard – BS EN 1991-1-1:2002
All Harlequin wooden sprung floors are 100% recyclable.
Products
Floor Planner
Let us help you find the right floor
Please use our handy floor planner to help decide the best for type for your needs and environment.
Related FAQs
Can you use a Harlequin sprung floor outside?
Harlequin Liberty HD is water resistant and can be used outside. Harlequin vinyl performance surfaces must only be used in dry conditions or under cover. Please contact us if you need more details on which Harlequin floors are suitable for outside use.
How do you install a Harlequin sprung floor?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
How is a Harlequin sprung floor supplied?
This depends upon the Harlequin sprung floor you choose. Harlequin WoodSpring and Harlequin Activity and are always installed by our highly-skilled technical team. Harlequin Liberty and Harlequin Liberty HD is usually installed by us, but you can install this floor yourself as it is a modular panel system. Harlequin Flexity is designed to be a self-installed sprung floor, but we can install it for you if required. Please contact us for more details.
What sprung floors do you have in your range?
We supply five Harlequin sprung floors; Harlequin WoodSpring, Harlequin Activity, Harlequin Liberty, Harlequin Liberty HD and Harlequin Flexity.
